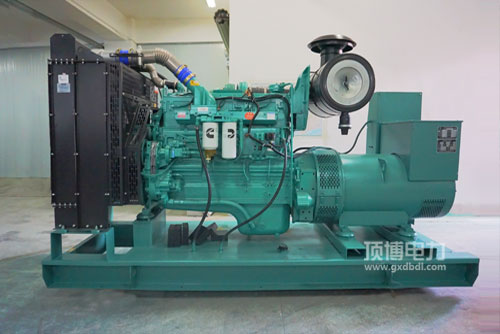

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发心理汽柴油划算性好: 先进的的汽柴油掌控程序，独特的STC、ESTC 分级分类掌控程序，特殊的设计方案的活赛顶上熔化物室，高压力压喷射汽柴油，积极雾化吸入，熔化物积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用起思想瞬态安全性能优良: 完满的起思想产品 规划，针对康明斯独特性的EFC平台，有效控制gps精度大，出现异常时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用汽车发行为升电率高: 纵向规划紧凑型.外表布置设计合理化，启动有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50充分考虑国内 非路第二价段及中美洲Tier2. Tier 3废气排放法律规范需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件而犯性好， 发起机运转及维护养护等养护等方便快捷，投资效率高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压时间范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯发电机组用启倾向的特殊性：质量小， 压缩视频比较高， 格栅价格废气热处理，可以启动服务器，中国移动车载多媒体外接电源的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启因素机型	长用公率(kW)Prime Power	预备耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
